ULTRA CLEAR PATTERN  SOLAR GLASS


ULTRA CLEAR PATTERN SOLAR PANEL GLASS  is also called photovoltaic glass
and energy saving glass which mainly used on solar panel
because of its super light transmittance rate.

Solar panel is a thin layer of optoelectronic semiconductor
which converting solar energy into electricity.
By considering its efficiency, we are using High-transmittance
and low reflection glass for its panel.


This high strength glass maintains the best image quality
by elimination unwanted distortions with the advanced optical technology.

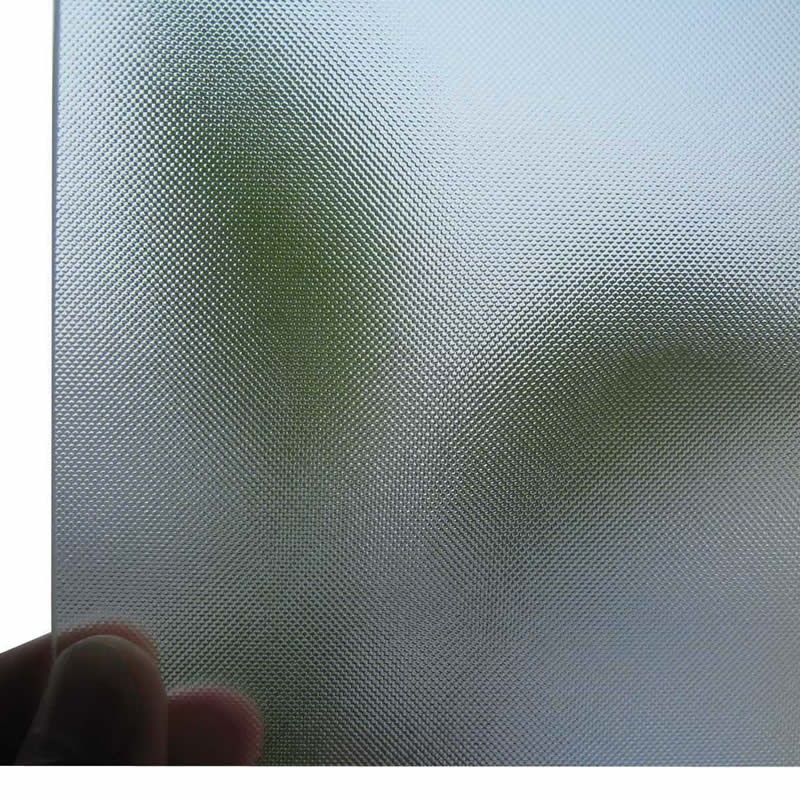

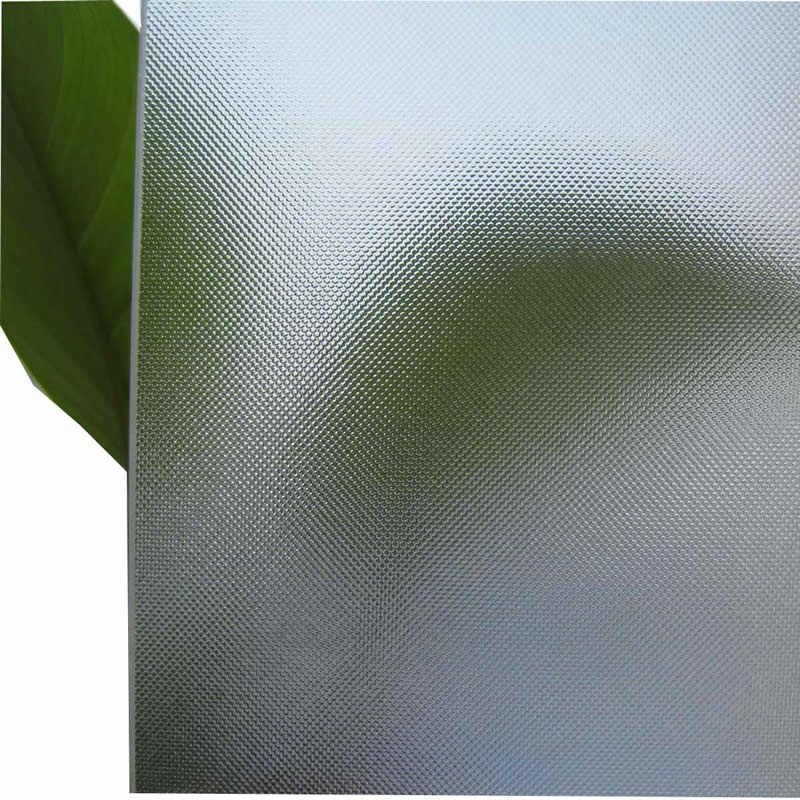

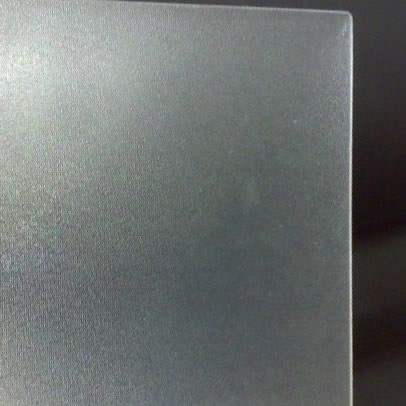

The special patters rolled onto the surface of glass
and the anti-reflection process reduces direct reflectance
and internal reflection so that the solar collector can get the most sunlight
and absorb the maximal solar energy, which is 8-15% higher than the normal ones.


ULTRA CLEAR PATTERN SOLAR PANEL GLASS is mainly used on solar panel
because of its super light transmittance rate.
It is made of unique formulation and high quality material
with iron content less than 100PPM.


By adopting international first-rate production technology and equipment,
it has special suede and flower pattern design.


Applications:
--Solar panel
--Solar water heate





  Solar glass Property

Thickness(mm)

3.2mm 4mm

Dimension(mm)

Customized

Dimension Tolerance(mm)

±1.0

Surface Condition

Structured in same way on both   sides acc. To technical requirement

Solar transmittance>

≥91.7%, without AR coating
  ≥94.7%, with AR coating

Iron Content

100ppm

Poisson's ratio

0.2

Density

2.5g/cc

Young's Modulus

73GPa

Tensile strength

90N/mm2

Compressive Strength

700-900N/mm2

Expansion coefficient

9.03 x  10-6/

Softening point(C)

720

Annealing point(C)

550

Strain point(C)

500
